Special Bucket Elevator For Vertical Lifting Of Industrial Materials
Product Introduction
The hopper scoops up materials from the lower storage, lifts them along with the conveyor belt or chain to the top, and flips downward after bypassing the top pulley. The bucket elevator then pours the materials into the receiving tank. The transmission belt of belt-driven bucket elevators usually adopts rubber belts, which are installed on the drive pulley at the bottom or top and the redirecting pulleys at the upper and lower parts. Chain-driven bucket elevators are generally equipped with two parallel transmission chains, with a pair of drive sprockets at the top or bottom and a pair of redirecting sprockets at the bottom or top. Bucket elevators are usually enclosed in a casing to prevent dust from flying.
Suitable for lifting materials from low to high places, the machine automatically and continuously operates upward after materials are fed into the hopper through the vibrating table.
The main components of the bucket elevator include hoppers, driving device, top and bottom pulleys or sprockets, belt or traction chain, tensioning device, and housing.
Technical Parameters of NE Series Bucket Elevator:
| Model | Lifting capacity | Bucket | Weight of operation parts | Max. size of materials |
| (m3/h) | Volume
(L) | Bucket gap (mm) | Bucket speed
(m/min) | Percentage (%) |
| 10 | 25 | 50 | 75 | 100 |
| NE15 | 15 | 2.5 | 203.2 | 29.8 | 28 | 65 | 50 | 40 | 30 | 25 |
| NE30 | 32 | 7.8 | 304.8 | 30.1 | 35 | 90 | 75 | 58 | 47 | 40 |
| NE50 | 60 | 14.7 | 304.8 | 30.1 | 64 | 90 | 75 | 58 | 47 | 40 |
| NE100 | 110 | 35 | 400 | 31 | 89 | 130 | 105 | 80 | 65 | 55 |
| NE150 | 170 | 52.5 | 400 | 31 | 112 | 130 | 105 | 80 | 65 | 55 |
| NE200 | 210 | 84.6 | 500 | 30 | 134 | 170 | 135 | 100 | 85 | 70 |
| NE300 | 320 | 127.5 | 500 | 30 | 188 | 170 | 135 | 100 | 85 | 70 |
| NE400 | 380 | 182.5 | 600 | 30 | 205 | 205 | 165 | 125 | 105 | 90 |
| NE500 | 470 | 260.9 | 700 | 30 | 223 | 240 | 190 | 145 | 120 | 100 |
| NE600 | 600 | 300.2 | 700 | 30 | 274 | 240 | 190 | 145 | 120 | 100 |
| NE800 | 800 | 501.8 | 800 | 30 | 313 | 275 | 220 | 165 | 135 | 110 |
Technical Parameters of TH/TGH Series Bucket Elevator
| Model | Bucket shape | Conveying capacity
(m3/h) | Bucket | Chain | Sprocket pitch diameter (mm) | Operation speed of bucket
(m/s) | Max. size of materials
(mm) |
| Width (mm) | Volume
(L) | Distance
(mm) | Pitch
(mm) | Breaking load
(KN) |
| TH315 | zh | 36.6 | 315 | 3.75 | 500 | 50 | ≥320 | φ630 | 1.4 | 35 |
| sh | 58.6 | 6 |
| TGH315 | zh | 46 | 3.75 | 400 |
| sh | 80 | 6 |
| TH400 | zh | 57.7 | 400 | 5.9 | 500 | 40 |
| sh | 92.8 | 9.5 |
| TGH400 | zh | 80 | 5.9 | 400 |
| sh | 125 | 9.5 |
| TH500 | zh | 73 | 500 | 9.3 | 688 | 86 | ≥480 | φ800 | 1.5 | 50 |
| sh | 118 | 15 |
| TGH500 | zh | 100 | 9.3 | 516 |
| sh | 157 | 15 |
| TH630 | zh | 114 | 630 | 14.6 | 688 | 60 |
| sh | 185 | 23.6 |
| TGH630 | zh | 152 | 14.6 | 516 |
| sh | 246 | 23.6 |
| TH800 | zh | 146 | 800 | 23.3 | 920 | 92 | ≥570 | φ1000 | 1.4 | 75 |
| sh | 235 | 37.5 |
| sh | 365 | 58 |
Technical Parameters of HL Series Bucket Elevator
| Model | Output (t/h) | Rotating speed (r/min) | Motor power (kw) | Weight (kg) |
| 10m | m |
| HL160 | 15-8.0 | 1.25 | 3.0-11 | 2480 | 140 |
| HL250 | 21-11 | 1.25 | 3.0-15 | 3390 | 180 |
| HL300 | 28-16 | 1.25 | 5.5-18.5 | 3930 | 200 |
| HL400 | 47-30 | 1.25 | 7.5-22 | 4990 | 260 |
| HL315 | 59-35 | 1.4 | 4.0-11 | 3960 | 180 |
| HL400 | 94-58 | 1.4 | 7.5-18.5 | 4980 | 205 |
| HL500 | 118-73 | 1.4 | 11-22 | 5820 | 255 |
| HL630 | 145-90 | 1.4 | 15-30 | | |

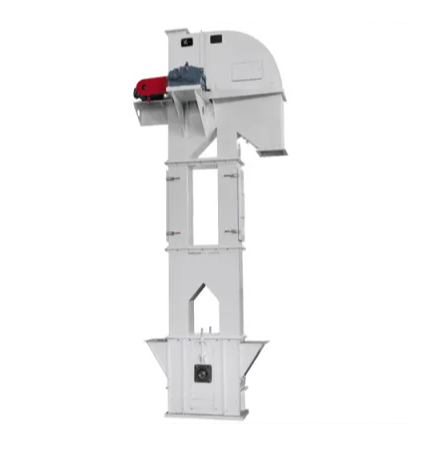

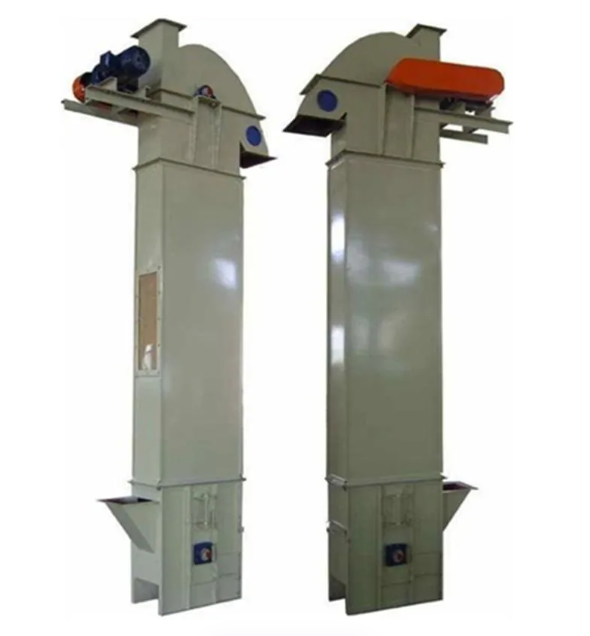

Product Display
LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands. Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time. LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
Q&A
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time?
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms?
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping
